KERA® DUROSTRONG

High performance plastics

Stable and highly chemically resistant. Durable, safe and PFAS-free.

What is KERA® DUROSTRONG?

We are an international provider of products and services in industrial corrosion protection. With our highly durable materials of the KERA® DUROSTRONG product family, we manufacture individual components for a wide variety of process systems according to customer requirements.

KERA® DUROSTRONG products are thermosets based on phenolic or furan resin, reinforced with mineral glass fibers and/or carbon fibers as well as special fillers.

KERA® DUROSTRONG products are PFAS-free (per- and polyfluoroalkyl substances). PFAS are the main components of fluoropolymeres like PTFE, PFA, ECTFE, FEP oder PVDF.

The chemical resistance of KERA® DUROSTRONG products is comparable to PTFE, PFA, ECTFE, FEP, PVDF and other fluoroplastics. At high temperatures, however, KERA® DUROSTRONG products exhibit significantly higher strength and mechanical stability. Restrictions or even bans that apply or could apply in future to products containing PFAS are irrelevant for products of the KERA® DUROSTRONG family.

KERA® DUROSTRONG is ideal for processes that require maximum chemical resistance at elevated temperatures. Whether hydrogen chloride gas is broken down into its chemical components in electrolysers, phosphoric acid is processed into white acid for the food industry, or tire cord and textile products made from viscose are spun in hot acid - the KERA® DUROSTRONG products convince with their outstanding properties.

The materials offer consistent media and temperature resistance. It is not only suitable for simple storage containers, but is also ideal for use in absorbers, absorption towers and columns, including all installations such as different floor types or support grids.

Advantages Products & Applications Origin

Your contact
Manfred Dahlem
Manfred Dahlem
+49 2623 600-410
Wolfgang Schmidt
Wolfgang Schmidt
+49 2623 600-726

Why KERA® DUROSTRONG?

Advantages

  • Individual shapes
  • High strength
  • With or without fiberglass or carbon reinforcement
  • Excellent chemical resistance
  • Temperature resistance up to 140°C,
    briefly up to a maximum of 170°C
  • Simple repairs possible on site
  • PFAS-free (not a “forever plastic”)
  • Long-lasting: up to 50 years
  • More cost effective than graphite and PTFE
  • Self-supporting: No substructure necessary
  • Asbestos free
  • Vacuum resistance

KERA® DUROSTRONG products & applications

Individually upon customer request

KERA® DUROSTRONG products can be used in a variety of ways thanks to their outstanding properties. In its original state, the material is a plastically formable mass that is manually kneaded, pressed or stamped into a variety of shapes.

Here you can find some application examples:

Absorption tower

Absorption tower Kera Duroplast Steuler Linings

Application: HCl absorber in the chemical industry
Product type: KERA® Plast L / GFK

Support grid

Tragrost Kera Duroplast Steuler Linings

Application: Support grid for a column
Product type: KERA® Conductive

Vessels

Complete HCl absorber made from KERA Plast L / SPL

Application: Vessels for the chemical industry
Product type: KERA® Plast L

Electrolysis frame

Distributor made from KERA SP 21

Application: Electrolysis frame for chlorine electrolysis
Product type: KERA® Fiber L

Electrolysers

[Translate to English (DUMMY):] Elektrolyseur Kera Duroplast Steuler Linings

Application: Electrolyser in HCl electrolysis
Product type: KERA® Plast L (frame)

Bubble cup trays

Bell bottom Kera Duroplast Steuler Linings

Application: Bubble cup trays for the phosphoric acid industry
Product type: Base KERA® Plast XL / Bells KERA® Conductive

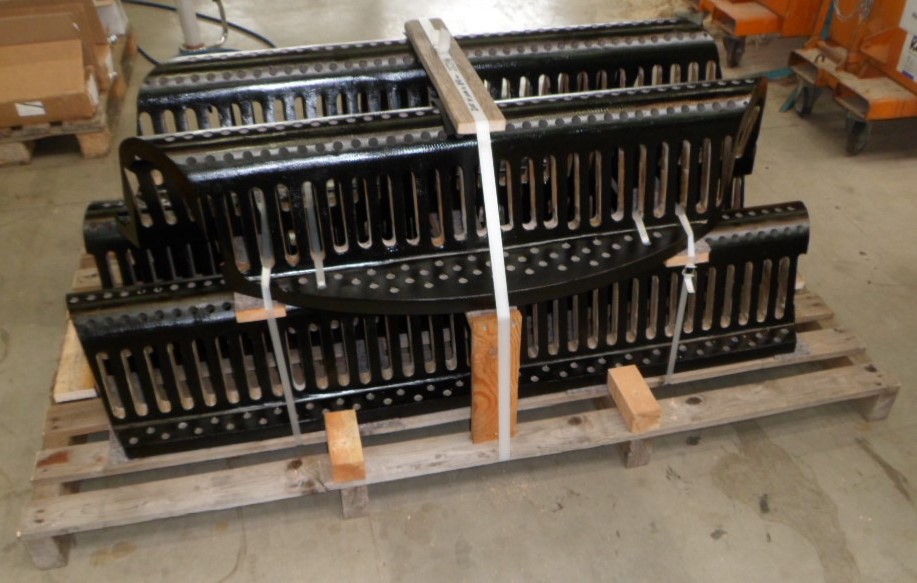

Hump grates

Hump grids KERA DUROSTRONG Steuler Linings

Application: Hump grates in the chemical and steel industry
Product type: KERA® Plast XL

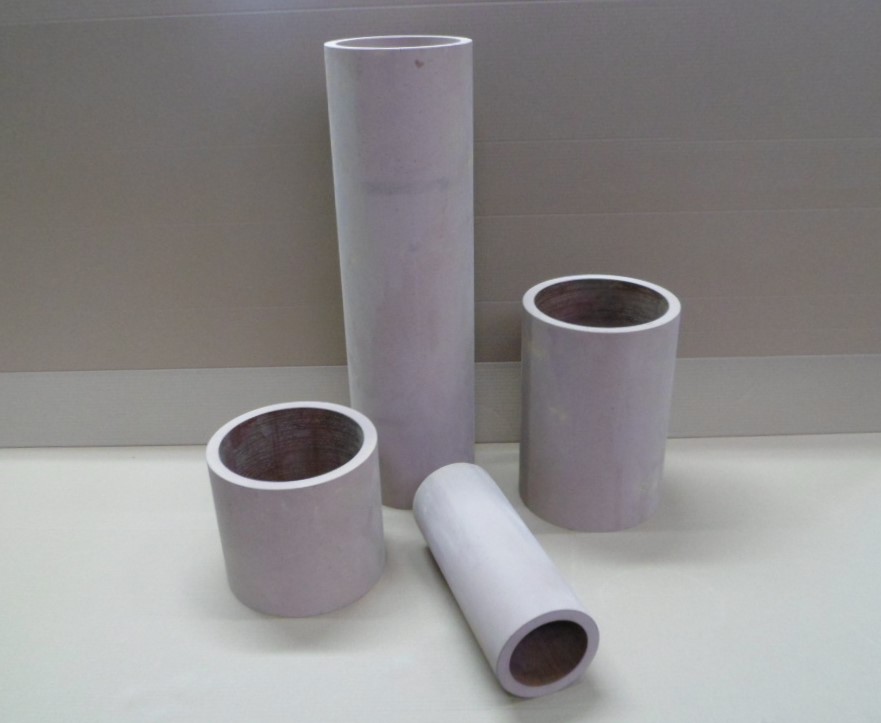

Sleeves

Sleeves KERA DUROSTRONG Steuler Linings

Application: Sleeve for the non-ferrous industry
Product type: KERA® Plast XL

Box channel distributor

Box gutter distributor KERA DUROSTRONG Steuler Linings

Application: Box channel distributor in the chemical industry
Product type: KERA® Plast F

Rollers

Rollers made from KERA Plast XL used for cellulose processing

Application: Rollers for the food and viscose industry
Product type: KERA® Plast XL

Tubes

Pipes KERA DUROSTRONG Steuler Linings

Application: Tubes for the chemical industry
Product type: KERA® Plast XL

Screen filters

Siebfilter KERA DUROSTRONG Steuler Linings

Application: Screen filters
Product type: KERA® Plast L

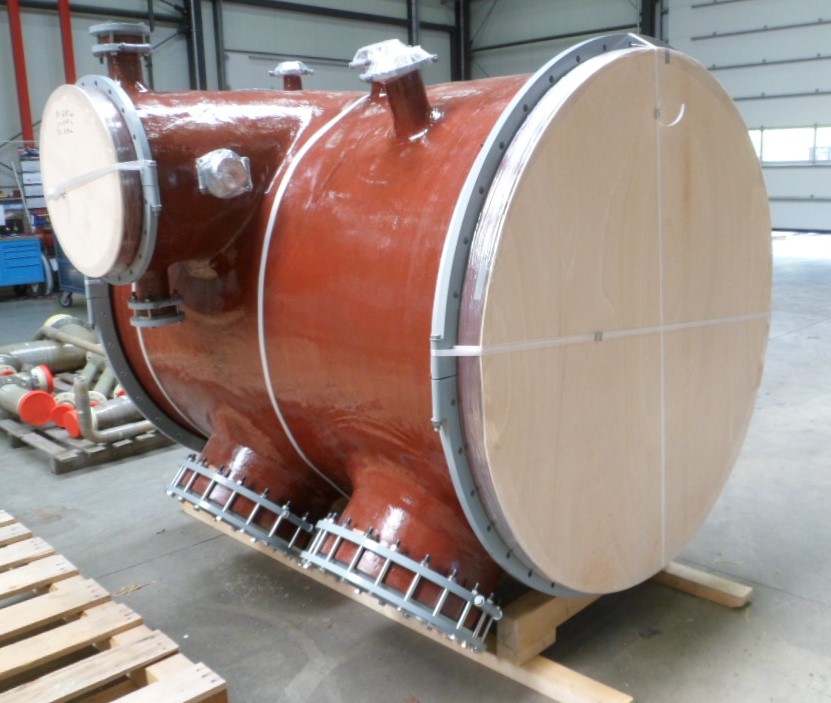

Separator

Separator KERA DUROSTRONG Steuler Linings

Application: Separator for the steel industry
Product type: KERA® Plast L

Spinning tubs

Spinning tub in the viscose fibre industry

Application: Spinning tubs in the viscose fibre industry
Product type: KERA® Plast XL

Thormann trays

Thormannboden KERA DUROSTRONG Steuler Linings

Application: Thormann trays
Product type: Floor KERA® Plast XL / Hoods KERA® Conductive

Spout distributor

Tüllenverteiler KERA DUROSTRONG Steuler Linings

Application: Spout distributor for refineries
Product type: KERA® Plast XL

Distribution plate

Distributor plates from KERA Conductive for a production plant for white phosphoric acid

Application: Distribution plate for the phosphoric acid industry
Product type: KERA® Conductive

Baths

Wannen KERA DUROSTRONG Steuler Linings

Application: Felling and washing skids for the food industry
Product type: KERA® Plast XL

Types of materials

  •     Resistant to non-oxidising acids and many solvents
  •     Glass fibre reinforced phenolic resin
  •     Resistant to non-oxidising acids and many solvents
  •     Very good for thermal and mechanical alternating stresses
  •     Phenolic or furane resin reinforced with glass and carbon fibers
  •     Very good antistatic properties
  •     Very good resistance to non-oxidising acids and many solvents
  •     Well suited for use with highly flammable substances
  •     Also proven with media containing hydrogen fluoride
  •     Carbon fibre reinforced phenolic resin
  •    Very good resistance to non-oxidising acids and many solvents
  •     Also proven for alkaline stresses and hydrofluoric acid
  •     Very good antistatic properties
  •     Carbon fibre reinforced furan resin
  • Resistant to non-oxidising acids and many solvents
  • Glass fibre reinforced phenolic resin
  • Filled with chopped glass for increased mechanical stability
  •     Resistant to non-oxidising acids and many solvents
  •     Glass fibre reinforced phenolic resin
  •     Resistant to non-oxidising acids and many solvents
  •     Glass fibre reinforced phenolic resin
  •     Resistant to non-oxidising acids and many solvents
  •     Very good for thermal and mechanical alternating stresses
  •     Phenolic or furane resin reinforced with glass and carbon fibers
  •     Very good antistatic properties
  •     Very good resistance to non-oxidising acids and many solvents
  •     Well suited for use with highly flammable substances
  •     Also proven with media containing hydrogen fluoride
  •     Carbon fibre reinforced phenolic resin
  •    Very good resistance to non-oxidising acids and many solvents
  •     Also proven for alkaline stresses and hydrofluoric acid
  •     Very good antistatic properties
  •     Carbon fibre reinforced furan resin
  • Resistant to non-oxidising acids and many solvents
  • Glass fibre reinforced phenolic resin
  • Filled with chopped glass for increased mechanical stability
  •     Resistant to non-oxidising acids and many solvents
  •     Glass fibre reinforced phenolic resin

Questions and answers

We answer the most frequently asked questions.

If you have any further questions, please contact us.


FAQ-area

The creation of KERA® DUROSTRONG

Steuler continues the acid proof construction activities of the Keramchemie

Aerial view of the STEULER-KCH Siershahn factory

The material KERA® was developed by Keramchemie GmbH and was based on the well-known Bakelite material. In 2010, the remaining acid mining activities of Keramchemie were taken over by the Steuler Group. Since then, this material has continued to be produced by Steuler Plastic Linings.

Plastic Linings

Learn more

Would you like to find out more about our products and services? Under KERA® DUROPLAST
you will find more details about our unique materials of the product family.

At Steuler Plastic Linings you can find information about the product and service portfolio.

MORE ABOUT KERA DUROSTRONG       MORE ABOUT PLASTIC LININGS

Process equipment made of PTFE-M/FRP

Contact us

We look forward to your exciting enquiries.

* Required fields

FAQ

What information does STEULER-KCH need to prepare a quotation?

In addition to the geometric dimensions, we need information on the medium or chemical composition, temperature and mechanical load to prepare a quotation.

Where are KERA® DUROSTRONG products manufactured?

KERA® DUROSTRONG products are manufactured exclusively by STEULER-KCH in Mogendorf.

Is it possible to repair or to modify KERA® DUROSTRONG products?

Yes, KERA® DUROSTRONG can be easily repaired with a specially designed repair kit and small modifications can be made on site.

What are the machining capabilities of KERA® DUROSTRONG products?

KERA® DUROSTRONG products can be easily machined using standard hand tools, but can also be machined using machine tools and suitable tools (tungsten carbide or high quality tool steel).

Are KERA® DUROSTRONG products free from PFAS?

KERA® DUROSTRONG products are thermosets that are free of perfluorinated and polyfluorinated alkyl compounds. They are not subject to any potential PFAS restrictions.

Can KERA® DUROSTRONG products be compared to other commercially available thermoplastics?

KERA® DUROSTRONG products were developed for the chemical industry and are comparable to high quality thermoplastics in terms of resistance. However, the stability and temperature resistance is much higher, so KERA® DUROSTRONG products often do not require additional lamination with carrier material.

Is it possible to customise the formulation of the KERA® DUROSTRONG product?

KERA® DUROSTRONG products can be adapted to specific requirements (chemical, mechanical, thermal). STEULER-KCH has chemical engineers, laboratories and experienced application technicians who can provide this service if required.

Does STEULER-KCH have its own in-house design and engineering department?

A team of well-trained engineers and statical experts in our own design department work out design and production documents.

In addition, STEULER-KCH offers special calculations such as Finite Element Analysis (FEA) as a service.
